Thermal Roll Slitting Machine With One Color Flexo Printing
PPD-FPSM680-1C

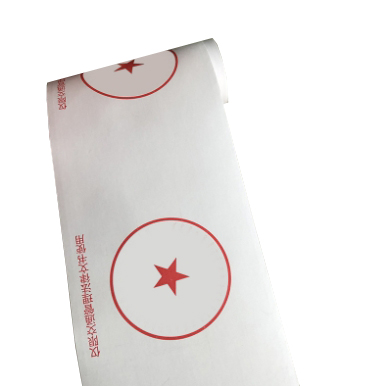

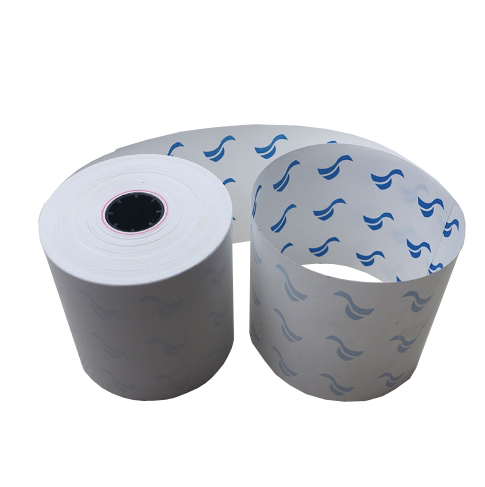

Thermal roll slitting machine with one color flexo printing is most often used in industries to slit thermal paper.Machine integrates flexographic printing and slitting with automatic loading and unloading of paper, automatic magnetic powder tension control, touch screen operation data setting and PLC program control, variable frequency speed regulation and full pneumatic operation, accurate slitting, reliable performance, simple operation. Machine is suitable for all kinds of thermal paper color printing, POS roll, ATM roll, lottery ticket, invoice, stickers, etc.It is an advanced and high-performance machine designed for precision industrial applications. Having equipped with high-quality components and tools, the offered machine ensures optimum performance and longevity.
Features :
1、The printing width is max 680mm, which has a wide range of applications, high quality printing result, accurate positioning, and can achieve monochrome flexographic printing and slitting in one time.
2、The lower knife is powered by power transmission, with accurate slitting, fast speed, neat slitting end surface, and less blade wear
3、 Automatic tension control system, 10kg magnetic powder brake, stable operation
4、 Frequency converter speed regulation, convenient and flexible
Main Data:
Name:Thermal Roll Slitting Machine With One Color Flexo Printing
Model:PPD-FPSM680-1C
I、Flexographic Printing Part:
Maximum diameter of web: Φ1200mm
Maximum width of web :900mm
Inner diameter of paper roll core tube: Φ76
Maximum printing width :680mm
Paper thickness :40~120g/m2
Printing roller (equipped with 12-inch roller) :12~22”
Maximum winding diameter :200mm
Working speed: 35~180m/min
Printing speed: 35~100m/min
II、Thermal Roll Slitting Part(Single-layer ):
Maximum unwinding width :900mm
Maximum unwinding diameter :1200mm
Minimum slitting width: ≥25mm
Diameter of paper roll core :76mm
Maximum winding diameter: 200mm
Roll core shaft diameter :ф8-ф25mm
Maximum slitting speed :0—150m/min
Power supply :380V/50HZ/2.2KW
Air source Compressed air: 0.6Mpa
