Stove burner aluminum foil liner production machine includes aluminum foil feeding machine, pressing machine, punching mold and other parts, it is a special equipment for the production of aluminum foil products.

Features:
1. This series of aluminum foil container production line uses PLC electronic control system, with the function of main body reversal. It uses a Japanese double safety solenoid valve and pressure relay to ensure safe operation.
2. Open type high-performance pneumatic punching machine with steel plate welded body and high hardness.
3. The dry friction clutch can stop the slider at any position, and can realize single-time, inching and continuous operation, which is useful to adjust the position of the mold and the workpiece at any time and improve the machining precision.
4. The whole machine uses Mitsubishi or Siemens PLC centralized control, and is equipped with safety double valve and balance cylinder, which is stable and reliable. It can be equipped with a light curtain protection device and a safety press.
5. The transmission system is contained within the fuselage and has a compact structure.
6. The production line uses an independent mobile operating station, which is convenient in operation and beautiful in appearance.

Feeding Machine:

Model:PPD-45T

Nominal pressure : 400KN

Slide Block Stroke:100-260mm

slide Stroke per minutes :70-50 times

Maximum Die Set Height :270-400mm

Die Set Height Adjustment:60mm

Slide Bottom Size:410X340mm

Stemhole Size:60mm* 60mm

Bolster Surface Size:810*440mm/990*750mm

Total power:5.5KW

Pressing Machine:

Pressure:450KN

Line   speed:30-50 times/min

Stroke：230mm

Max   mould setting height：400mm

Size of Screw Hole of Mould：50*60mm

Worktable   dimension：1000*800 mm

Motor   power：7.5KW

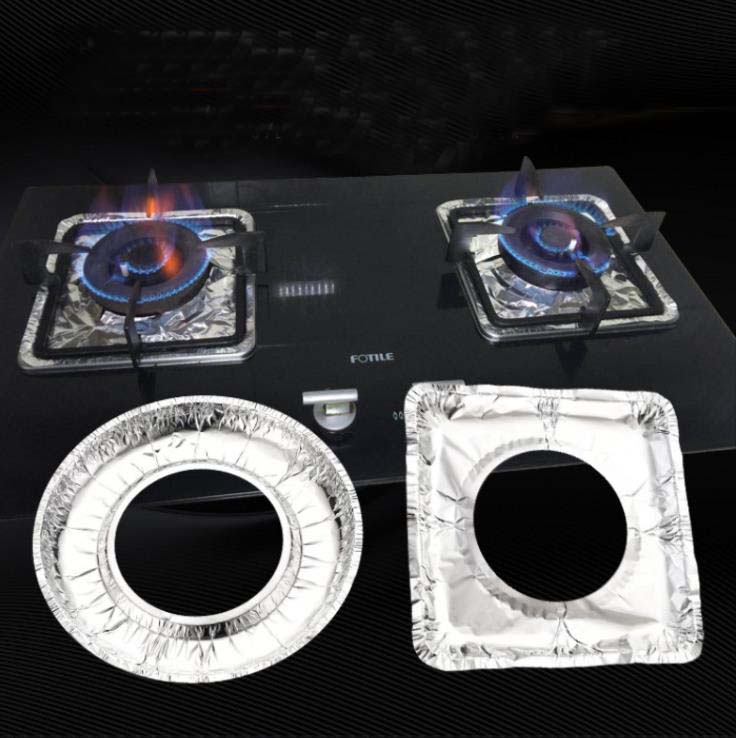

Stove Burners Aluminum Foil Liner Mould：

Product size：Square: 223x197x25mm；Round:ID:110mm,OD:230mm or option

Thickness:0.02mm

Shape:Square or round shape

NOTE:Different sizes can be customized.
