Semi Auto Single Shaft Aluminium Foil Rewinder

PPD-SAFR450
Semi Auto Single Shaft Aluminium Foil Rewinder
Get Quote

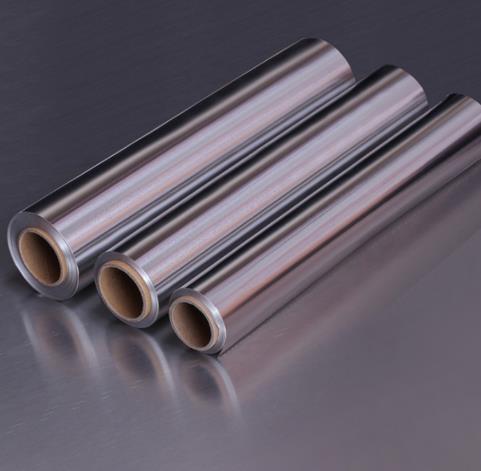

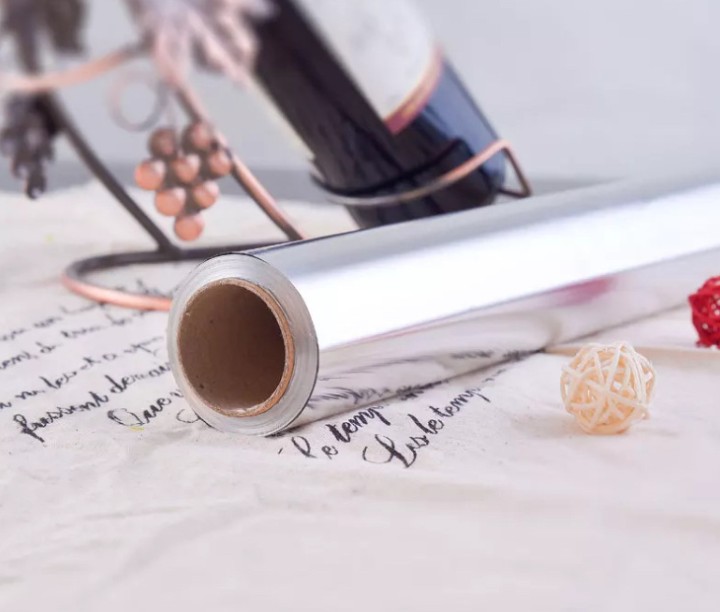

Semi auto single shaft aluminium foil rewinder is our latest economy model for high speed,heavy production of aluminium foil roll rewinding. It is ideal for rewinding aluminium foil catering roll,household foil,kitchen foil roll etc.
Machine is fabricated using superior quality raw materials and other components in accordance with industry norms and standards.

Features:
1. Manual model, single shaft rewinding, user friendly.
2. Machine is equipped with a meter counter, accurate counting the setting length.
3. Air shaft unwinding and magnetic powder control tension control of aluminium foil raw material,more stable.
4. Pedal switch control of paper core chucks,making it more convenient to load and unload of paper core and product roll.
5. Machine is equipped with a speed control switch, speed is adjustable.

Main Data:

Name: Semi Auto Single Shaft Aluminium Foil Rewinder

Model: PPD-SAFR450

Applicable material: aluminum foil

Mother roll width: Max450mm

Mother roll inner diameter: 76mm

Inner diameter of rewinding: 30mm, 35mm, 38mm (optional)

Rewinding length: Max300m

Rewinding speed: Max100m/min

Voltage: 220/380/415V, 50Hz (optional)
