Semi auto drafting film slitter rewinder is mainly used to slit various specifications of grafting films.
Machine corrects the misalignment of the product through the ordinary slitting and rewinding function, effectively improving the uniformity and flatness of the product appearance.

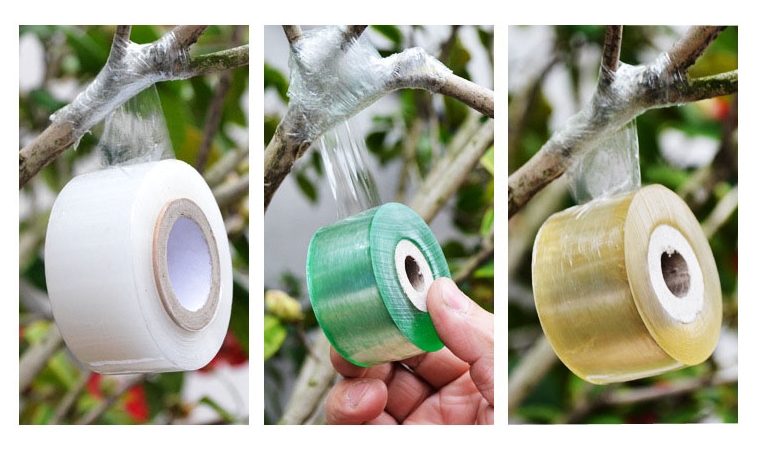

The purpose of the grafting film is to wrap the grafted fruit tree seedlings with bandages, which will not damage the plant shape and increase the grafting survival rate. Commonly used grafting film colors are green, yellow and white.

Features:
1. The inner diameter of the reel paper tube is 1 inch, 1.5 inches, 2 inches, and 3 inches, which can be switched freely.
2. Machine has its own slitting function and can arbitrarily slit different specifications, such as 40mm, 60mm, 80mm, 100mm etc, max500mm
3. Machine is also suitable for slitting other PE/PVC films, such as static film, vegetable strapping film, wire film, etc.

Main Data:

Name:Semi Auto Grafting Film Slitter Rewinder

Model:PPD-GFSR500

Width of mother roll:500mm

Outer diameter of mother roll:max450mm

Slitting and rewinding width:40-500mm option

Outer diameter of slitting and rewinding machine:max180mm

Speed:max650m/min

Voltage:220/380/415V,50Hz

Packing size:1400*1200*1300mm

Weight:650kgs
