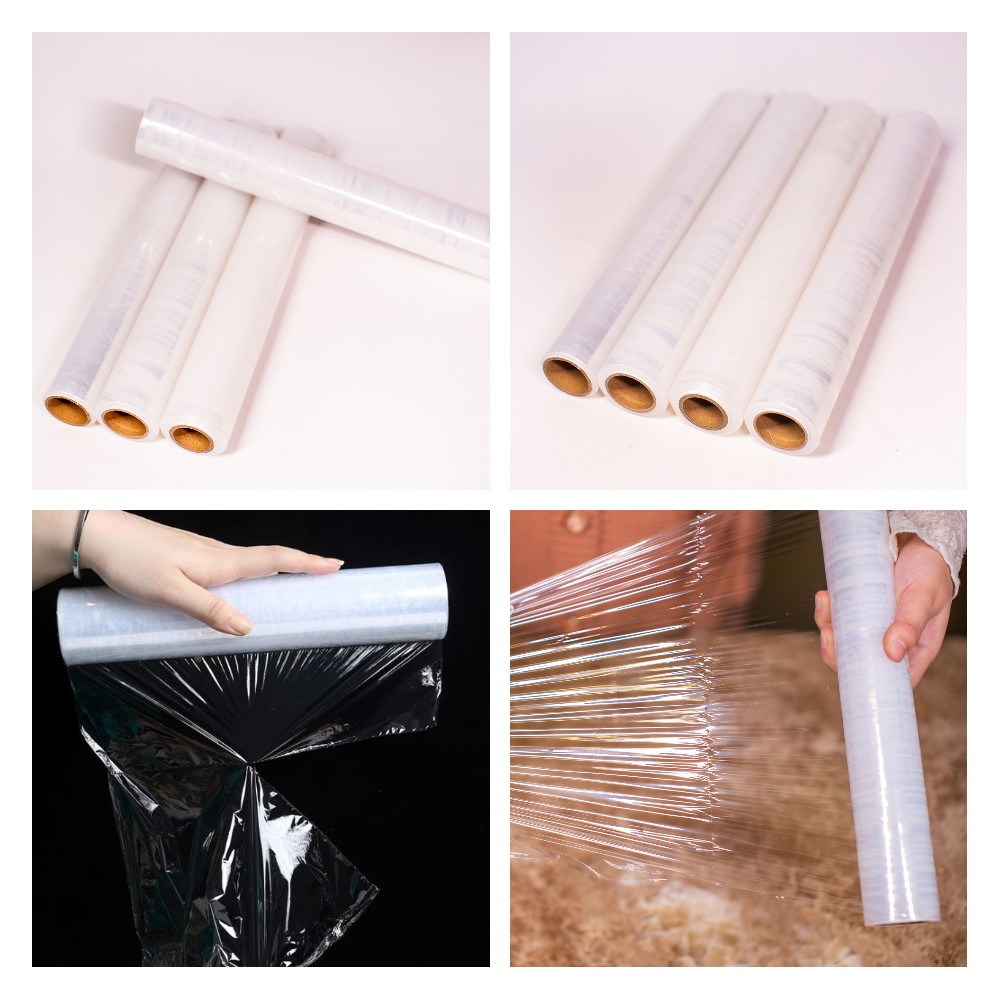

The semi auto food cling wrap film perforation rewinder uses surface rewinding method, it can rewind the roll from 2 meters to 300meters for PE cling film, PVC cling film, PE stretch film etc. The machine works
with auto perforation system, the final product roll is with easy tear perforation line.

Features:
1.PLC + human-machine interface + inverter control system, easy to operate and operate the machine.
2.Automatic meter counting, when the setting length is reached, the machine stops
3. Servo motor control of the punching system, more stable.

Main Data:

Name:Semi Auto Food Cling Wrap Film Perforation Rewinder

Model:PPD-CFPR300

Jumbo roll width:300mm

Jumbo roll inner diameter:76mm

Jumbo roll outer diameter:400mm

Rewind roll width:max300mm

Rewind roll inner diameter:30/35/38mm option

Rewind roll length:3-300m option

Production speed:300m/min

Total power:1.5kw

Voltage:220/380/415V option

NOTE:Different sizes can be customized.
