Semi Auto 3 Head Aluminum Foil Roll Rewinding Machine

PPD-3FR450
Semi Auto 3 Head Aluminum Foil Roll Rewinding Machine
Get Quote

Semi auto 3 head aluminum foil roll rewinding machine is a high automation level model in the semi auto range of foil rewinding machines.
It is designed with 3 heads automatic change for improving the core change speed, it can upgrade more production speed.
The machine is followed by the world top brand of PLC programmer unit, LCD touch screen, this set can simplify the operation, the operator only needs to enter the length setting on the screen page.
The machine uniquely designs with automatic paper core gluing with automatic foil placement on the core to start rewinding, automatic stop when the length setting is accurately reached.
Automatically cut by the top drop knife blade, automatically changes to the next paper core for the 2nd head to start new production.

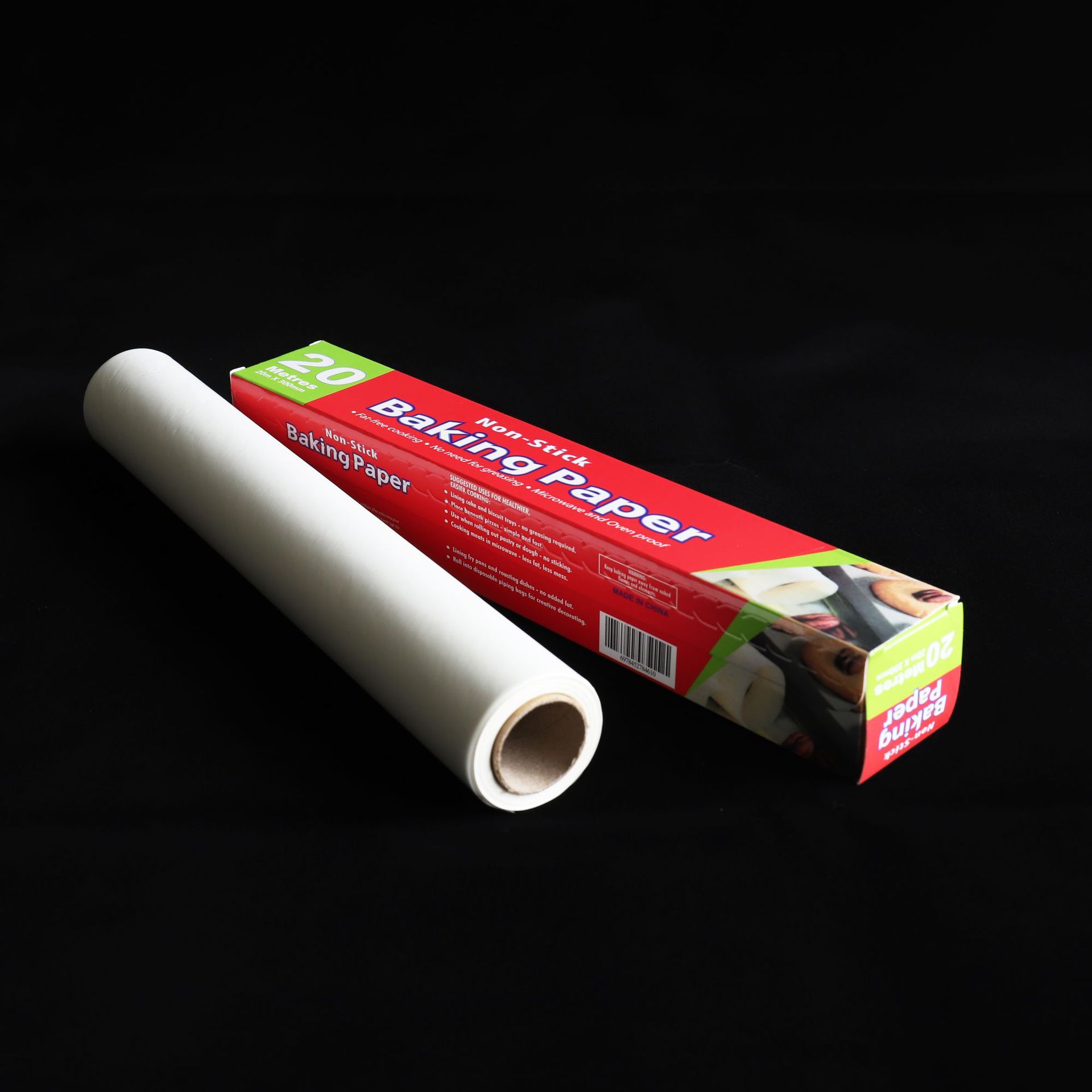

This machine is considered for various kitchen roll materials, it can rewind food paper, includes baking paper, silicone paper, wax paper, PE coated food wrapping paper, hotdog paper etc.

Main Data:

Name:Semi Auto 3 Head Aluminum Foil Roll Rewinding Machine

Model:PPD-3FR450

Material rewinding: Aluminum foil/food paper

Master roll web width:max 450mm

Master roll inner core diameter:3/6inch

Master roll outer diameter: maximum 450mm

Finished roll web width:500mm

Finished roll inner core diameter:25/35/38/ 40mm

Finished roll length range:2-90meters

Design speed:max150m/minute

Total power:4kw

Air need:0.3mpa

Magnetic powder break clutch system:50N.m

Voltage:220/380/415/450v,3phase
