Nonwoven Wallpaper Rewinder
PPD-NWPR1000

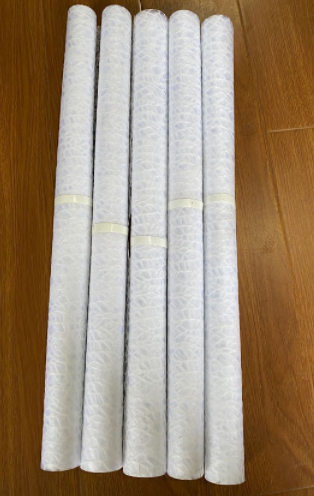

Nonwoven wallpaper rewinder is a multi-function model, it can rewind nonwoven fabric roll, wallpaper roll, book cover, PE coated paper, gift paper etc. The machine
uses servo motor control, touch screen data setting, automatic meter counting, automatic cutting of the finished product, very simple to operate.
As an option, the machine can do both coreless and with two types of paper core.
Features:
1. The machine works with emergency stop switch, automatic stop and automatic tension adjustment
2. Automatic loading of unwinding roll
3. Pneumatic cutting system
Main Data:
Name:Nonwoven Wallpaper Rewinder
Model:PPD-NWPR1000
Rewinding roll width:max1000mm
Maximum unwinding roll diameter: 800mm
Maximum rewinding roll diameter: 280mm
Unwinding air shaft size:76mm
Rewinding sir shaft size:38mm
Production speed:180-200m/min
Voltage:220/380V option
NOTE:Different sizes can be customized.
