Products

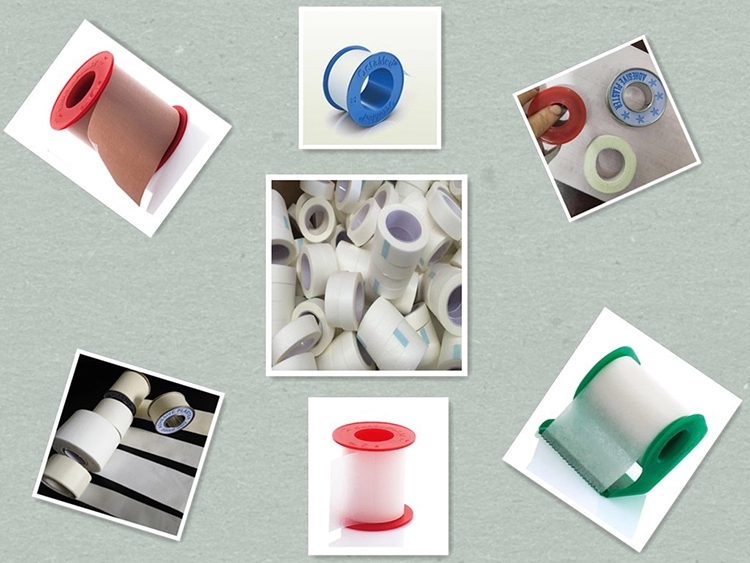

The medical adhesive tape slitting machine is suitable for slitting and rewinding all kinds of medical tape automatically, such as non woven tape, silk tape, zinc oxide plaster, fabric medical tape, PE film tape etc. Paper core can be metal core, plastic core and paper core.

Features:
1.Stepless speed regulation of frequency conversion and three-step length setting that provides smooth rewinding operation to ensure accurate rewinding length. It can automatically slow down and stop when running at high speed.
2. Unwinding tension is adopted with pneumatic braking control.
3. Rewinding tension is adopted with dual control equipped with clutch and the independent slide setting for free adjustment of tensile force.

Main Data:

Name:Medical adhesive tape slitting machine

Model:PPD-MTS1100

Medical tape width:max1100mm

Unwinding roll diameter:Max800mm

Slitting width:Min12mm

Rewinding roll diameter:max75mm

Production speed:130m/min

Voltage:220/380/415V option

NOTE:Different sizes can be customized.
