Kusina foil lunch box machine
PPD-SA-63T

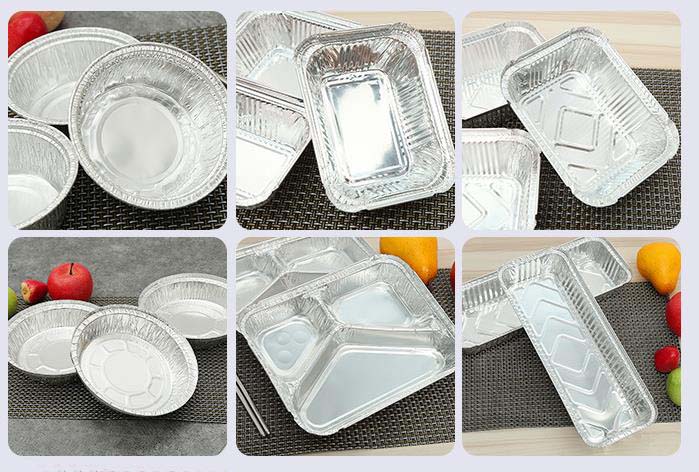

Kithcen foil lunch box machine is a production line for the production of aluminum foil container, aluminum foil tray, aluminum foil dish, aluminum foil plates etc. products.
The complete production line consists of aluminum foil feeding machine, high accuracy press machine, aluminum foil punching mold.
I.FEEDING MACHINE:
ModelPPD-SA-63T
Max.Material Width650mm
Max.Material Diameter600mm
Speed40-70pcs/min
Feeding Length20-999mm
Feeding Machine Power1.4kw
II.PRESS/PUNCHING MACHINE:
Max.Pressure630KN
Slide Stroke120-260mm
Mould Loading Height310-450mm
Press Power5.5kw-7.5kw
Working Table(L*W)870*520mm/1000*800mm
Mould Adjustable Height70mm
Voltage380V/50Hz

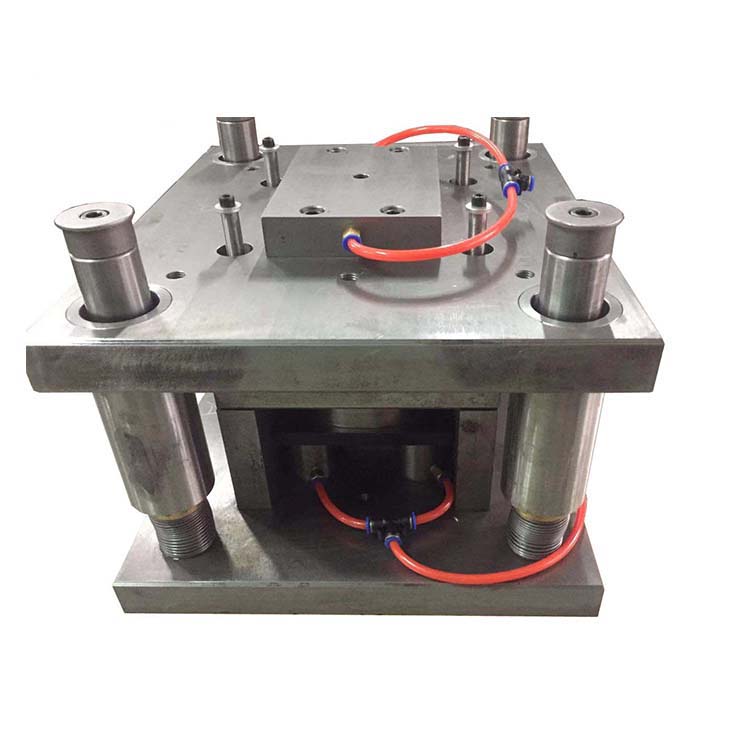

III.Punching Mould
