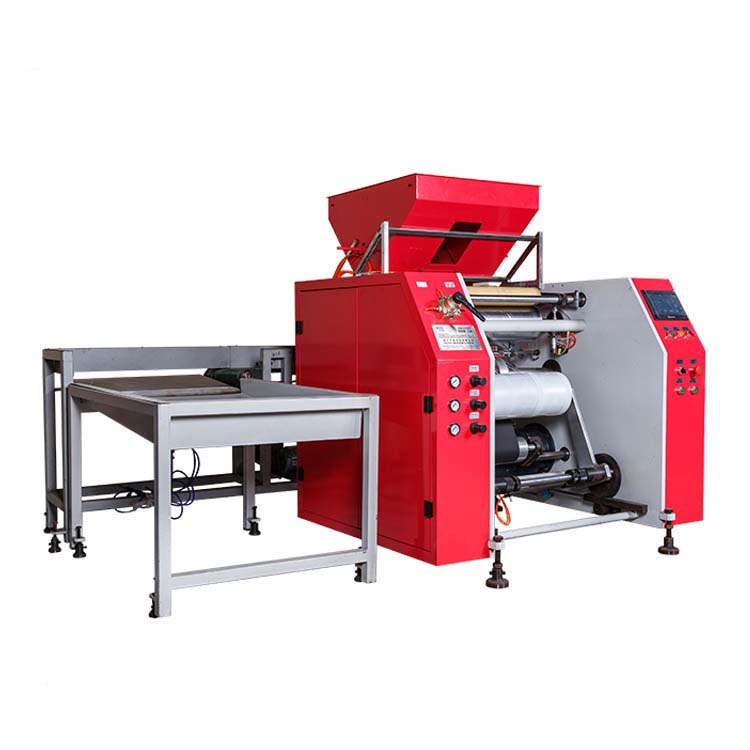

The high speed edge folded stretch film rewinder is an innovative machine designed to provide high-speed and efficient film rewinding. The maximum speed of this machine is 1200m/min, and it can handle a large amount of stretch film in a short time.
One of the outstanding features of this rewinder is its automatic folding edge technology, which makes the rewinding process more efficient. Its 12.7mm edge folding ensures no loose edges or overlaps on the film roll.
The high-speed stretch film rewinder with automatic folding edges is easy to operate and maintain, making it an ideal choice for large factories that regularly produce and distribute stretch films.

Features:
1. Automatic rewind, automatic side folding.
2. High speed rewind, max 1200 meters per minute.

Main Data：

Name:High Speed Edge Folded Stretch Film Rewinder

Model:PPD-HARW500F

Jumbo roll width:500mm

Jumbo roll ID:76mm

Jumbo roll OD:max500mm

Rewinding roll width:max500mm

Edge folding width:12.7mm

Rewinding roll ID:38/50/76mm

Rewinding roll OD:max180mm

Speed:max1200m/min

Voltage:220/380/415V,50Hz

Power:4.37kw
