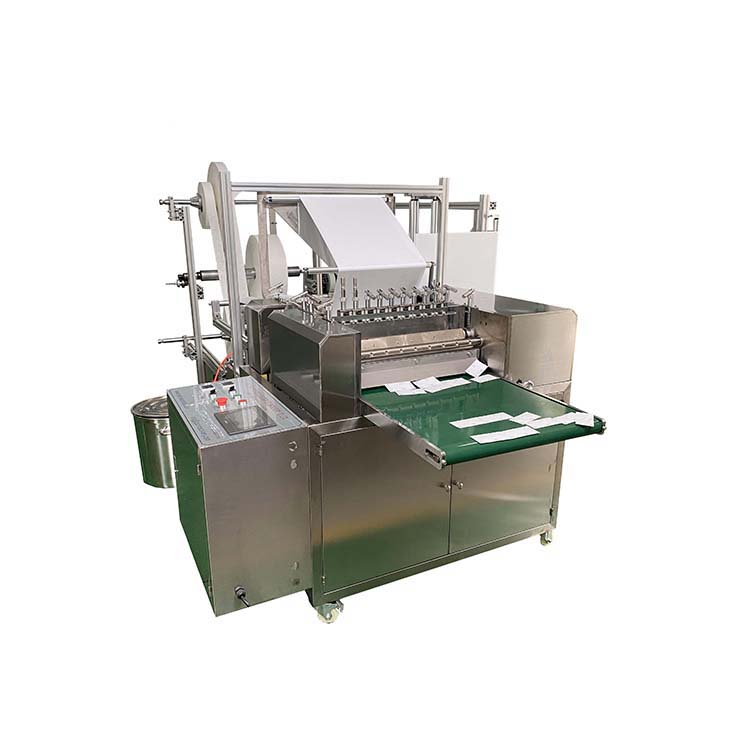

High Speed ​​High Efficient Alcohol Prep Pad Packaging Machine

PPD-8L800
High Speed ​​High Efficient Alcohol Prep Pad Packaging Machine
Get Quote

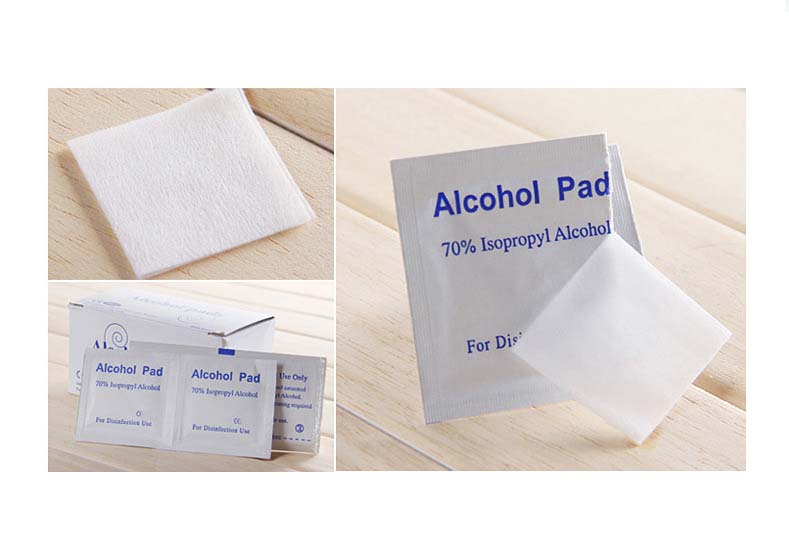

The high speed high efficient alcohol prep pad packaging machine is the latest model to pack alcohol prep pad, alcohol swab pad, alcohol wipes, BZK antiseptic pad, povidone iodine prep pad, nail polish pad, cleansing pad and any other four side pad of the same size etc.
The machine works with high speed at 800pc/min, it improves the production than the market conventional model.

Production process:
Nonwoven fabric and packing film load into the machine → nonwon cloth folding → nonwon cloth cutting → adding alcohol liquid → alcohol and nonoven cloth to bags → making bags → seal → cutting → seal the final product.

Features:
1. The main contact part of the machine uses 304 stainless steel.
2.Intelligent photoelectric eyemark vertical positioning system control packing film, the position is accurate.
3. Four sided seal and packing sealing system to ensure no leakage.
4. The conveyor system is compact, reliable, high efficiency, labor saving and convenient in maintenance.

Technical Data:

Name:High Speed New Model Alcohol Prep Pad Packaging Machine

Model:PPD-8L800

Nonwoven cloth size:Spunlace nonwoven cloth, 45,50,55,60gsm,ID:3inch,OD≤600mm, Width: 60mm option

Packing film size:73/113/116gsm,ID:3inch,OD:≤400mm,Width:400mm

Nonwoven cloth unfolded size: L:60mm x W:30mm

Nonwoven cloth folded size:L:30mm x W:30mm

Packaging size:L:50mm x W:50mm

Folding method:One fold,two layers

Adding liquid:accurate amount  can be adjusted

Processing ability:max800 bag/min

Nonwoven cloth size:Spunlace nonwoven cloth, 45,50,55,60gsm,ID:3inch,OD≤600mm,Width: 60mm option

Packing film size:73/113/116gsm,ID:3inch,OD:≤400mm,Width:400mm

Total power:2.6Kw

Voltage:220v,50Hz

NOTE:Differents sizes can be customized.
