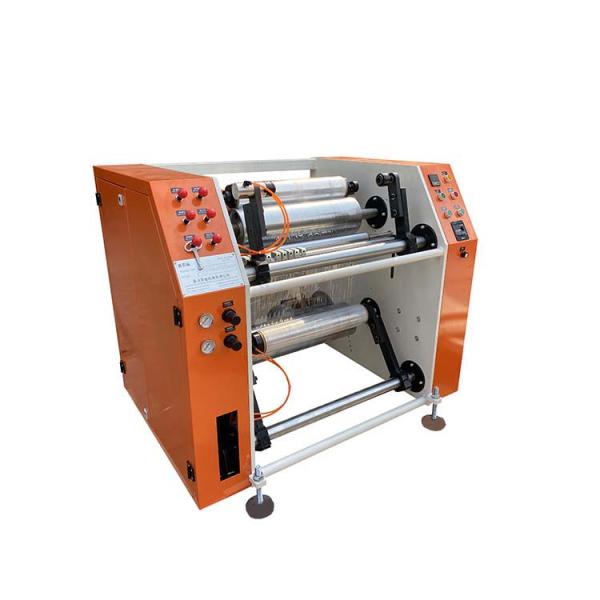

Fully automatic 5 shaft cling film perforation rewinder width 450mm is applied to rewinding the food cling film. It can perforate the film when rewinding and there is higher efficiency that the single shaft model. The distance of perforating line can be set in program.The final product is easy to tear off,no need to use extra toothed cutter or slitter.

Features
1. There is higher work efficiency because of cycling rewinding with 5 shafts.
2. Machine has control system consisting of PLC, human-computer interface and frequency changer.
3. It's humanization that the chuck can shut down the machine automatically if there is no paper tube, and the paper tube bucket will alarm automatically when there is lack of paper tube.
4. It's servo control system to control the distance of perforating line ,can set freely.

Technicial Data:

Name:Fully Automatic 5 Shaft Cling Film Perforation Rewinder Width 450mm

Model:PPD-5CFPRW450

Width of mother roll:450mm

Width of finished roll:maxmm

Speed:Max8rolls/min（30m/roll）

Mother roll diameter:Max 500mm

Length of finished roll:8-120m

Core of mother roll:3"

Core of finished roll:35/38mm or customized size.

Distance between perforating line:Min150mm

Packing size:1700*1350*1680mm

Weight:1000KG
