Fully Auto Stretch Film Rewinder Machine Production Line
PPD-L500
The fully auto stretch film rewinder machine production line is a production line for containing 2units, 3 units or 4 units stretch film rewinder, carton sealer and includes a roller slide down table to convey the ready sealed carton to the pallet for easy loading .
There are two different types, L type and T type of production line for individual needs of consumers.
The machine is in high speed, fully automatic rewinding, automatic shaft changing, PLC man-machine interface communication program, touch screen operating for user friendly.

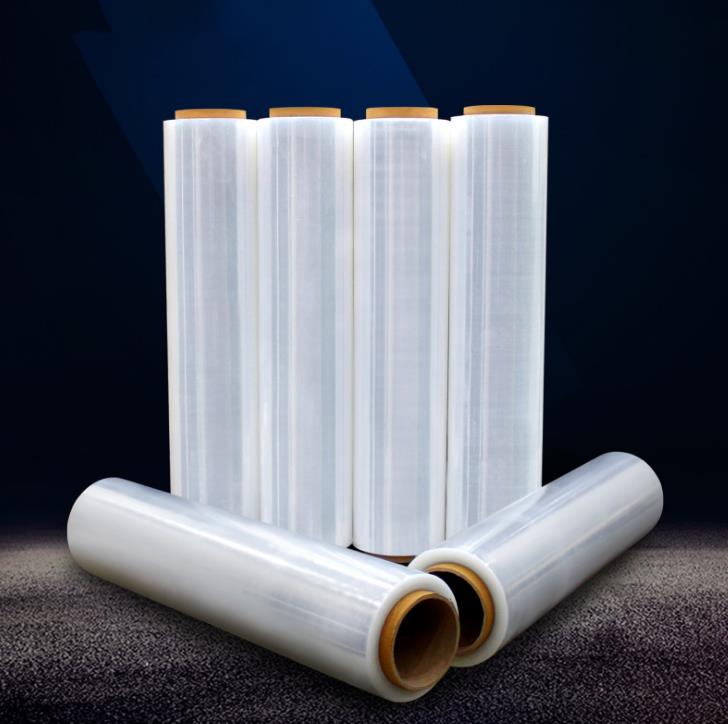

It is suitable for rewinding stretch film, industrial stretch, wrapping film, food cling film etc.
Technical Data:
Name:Fully Auto Stretch Film Rewinder Machine Production Line
Model:PPD-L500
Unwinding roll width:Max 500mm
Unwinding paper tube diameter: 3inch
Unwinding Diameter: max 500mm
Rewinding width: Max 500mm
Rewinding paper core diameter: 2inch.3inch(optional)
Rewinding Diameter: 300mm(max)
Rewinding speed: 1500rpm/min(max)
Total Voltage: 3phase,415v/380v/450v option
Total Power: 4.37kw
NOTE:Different sizes can be customized.
