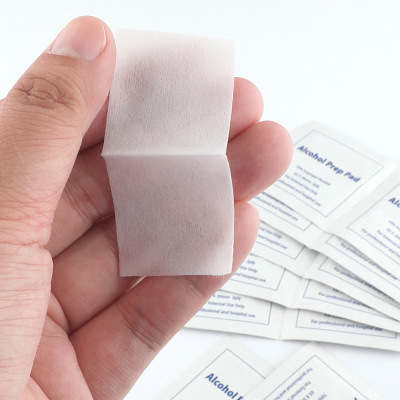

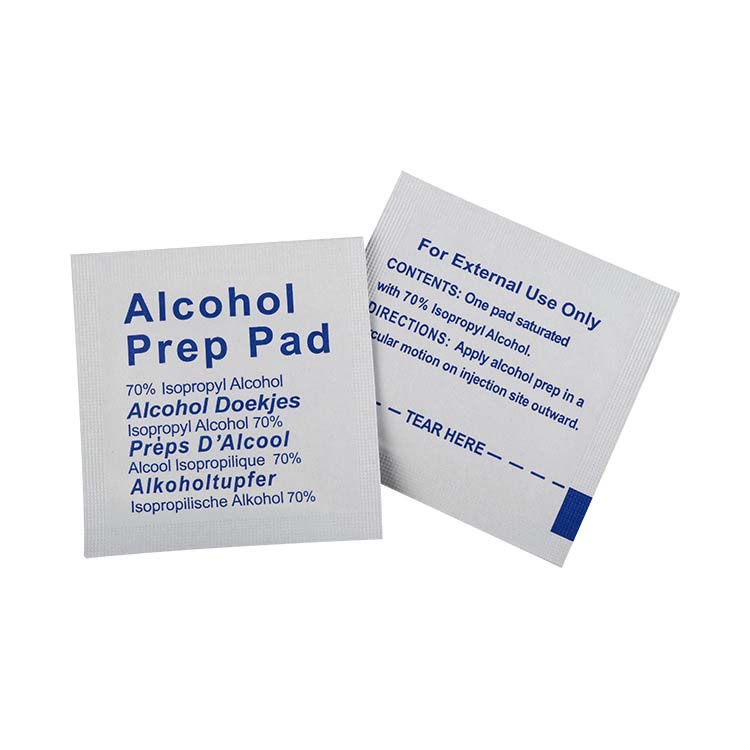

Fully auto alcohol prep pad making machine is ideal for automatic production of alcohol prep pads, shave wipes, povidone iodine prep pads, nail polish remove wipes, bzk antiseptic swabs etc.
It has automatic PLC HMI program+LCD Touch screen for simple operation.
The machine uses the latest Japanese technology for very fast production at 240-280 PCs per minute.

Production process:
Non-woven loading machine→folding→cutting→Spray liquid→pack the bags→making the bags→sealing the bags→cutting→product.

Technical Data:

Name:Fully Auto Alcohol Prep Pad Making Machine

Model:PPD-2R280

Non-woven unfolded size: L 60mm × W 30mm

Non-woven folded size: L 30mm × W 30mm

Packaging size: L 50mm × W 50mm

Processing capacity: 240-280 bags/min

Suitable wet pad material: roll , 30-60g /㎡,water-sting non-woven cloth,diameter≤600mm, width 60mm

Suitable packing material: roll, 70-110g/㎡,aluminum foil for alcohol prep pad,width 400mm

Raw material paper core inside diameter :76.2mm (3inch)

Total power: 2.6Kw

Voltage:220V,50Hz

Noticed:Various specs can be customized.
