Disposable Paper Cup Machine
PPD-PCM80
The disposable paper cup machine is an automatic machine with multi-working station, which runs the process of single PE coated or double PE coated, paper cup fan feeding, cup side welding, silicon oil lubrication, bottom punching, bottom preheating, bottom folding , bottom knurling, top curling and cup discharging.

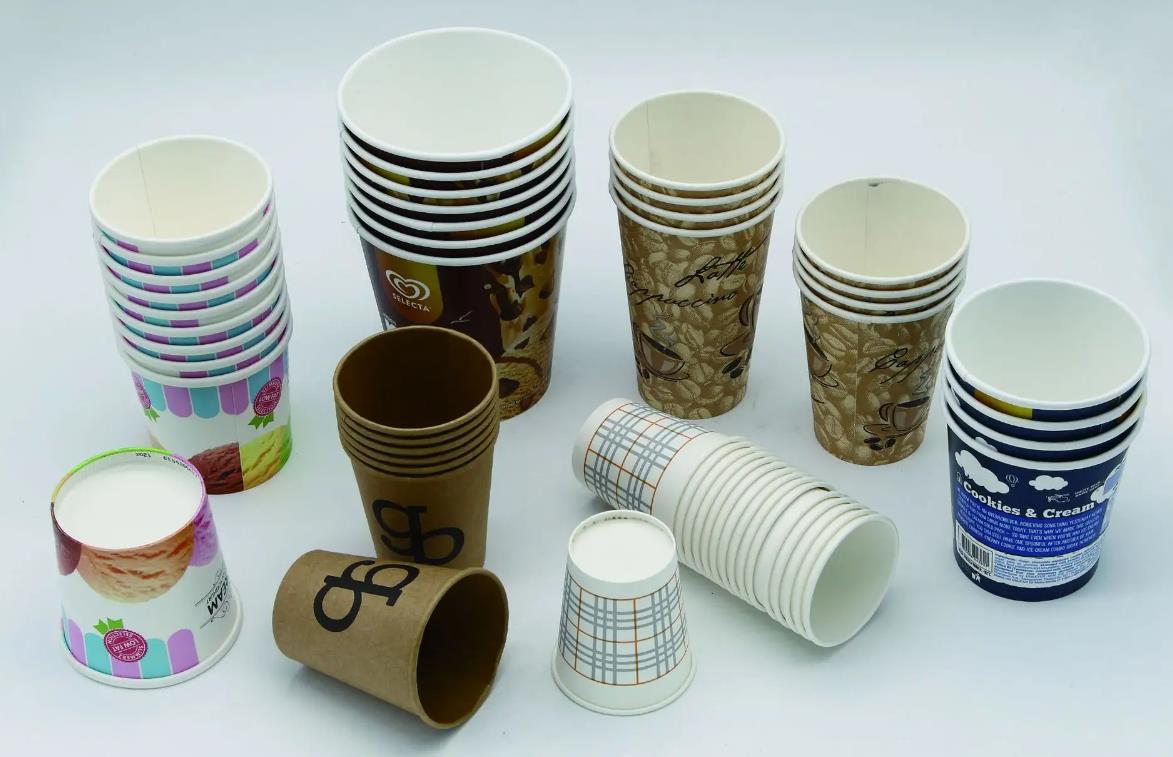

It is an ideal equipment for making disposable paper cups for all kinds of cups, such as hot and cold drinks, coffee, tea, ice cream cups and so on.
Features:
1. Advanced cam indexing open structure. accuracy of manufacture, reliability and stability of machine operation.
2. High efficient: 75-85pc/min.
3.Photocell detection, failure alarm, with the advantage of humanism design, safe operation, easy maintenance and durable running.
4. The use of automatic lubrication system ensures high speed operation of the machine for a long time.
Main Data:
Name:Disposable Paper Cup Machine
Model:PPD-PCM80
Suitable paper material:140~250gsm PE coated paper
Paper cup height:max135mm
Paper cup botton width:max70mm
Speed:75-85pcs/min
Voltage:220/380V,50/60Hz option
Total power:4kw
NOTE:Different sizes can be customized
