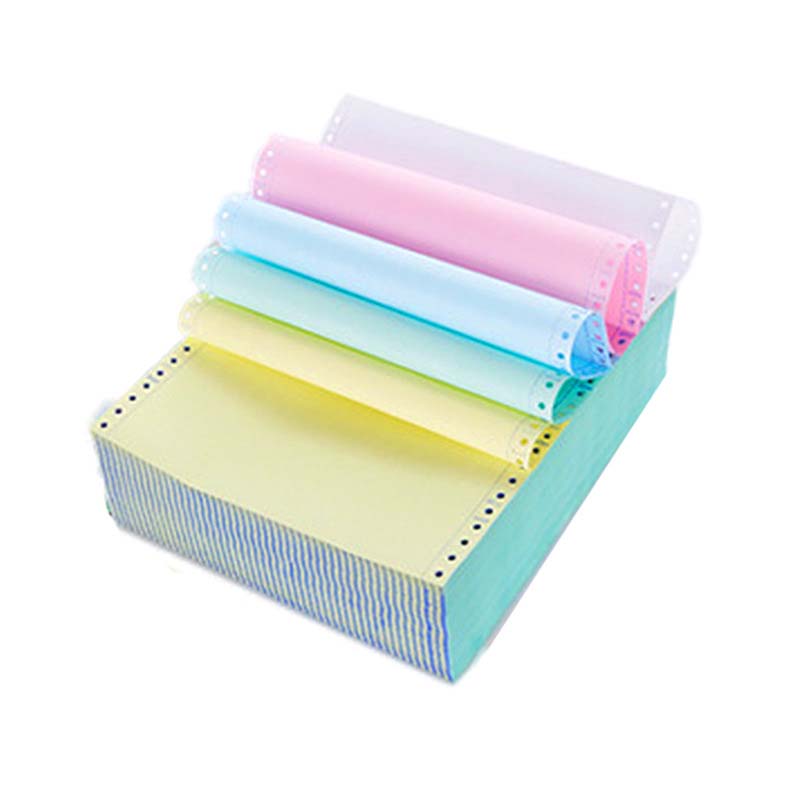

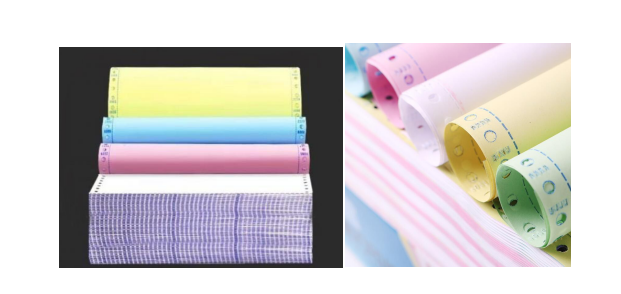

Blank Continuous Computer Form Processor(7 Ply Paper)
PPD-7PLY150
Blank continuous computer form processor(7 ply paper) adopts cast iron wall panels, heavy-duty machine structure, stable transmission with low noise, strong overall integrity and high stability of each layer of paper supply rack.
Each unit is equipped with an infrared automatic deviation correction and automatic tension system, which is easy to operate, runs more smoothly, has high punching accuracy, neat paper edges, accurate paper length, reduces waste, and improves efficiency.
I. Main parameters:
Name:Blank Continuous Computer Form Processor(7 Ply Paper)
Model:PPD-7PLY150
Maximum paper roll width:500mm
Maximum paper feeding width:482mm
Maximum unwinding diameter:1000mm
Paper weight:40-120g/㎡
Fold length:11 inches
Mechanical speed:5-150m/min
Power supply:380V/50HZ/2.2KW
Paper tube inner diameter:76mm (3 inches)
Magnetic powder:5KG
II. Main configuration:
1) Each layer of paper supply shaft is equipped with an air expansion shaft, 1 piece/layer
2) Configure infrared automatic correction system for each layer of deviation correction
3) Automatic tension control system for each layer of tension
4) Perforated disc 22 inch high-precision
5) Bottom drum 22 inches
6) 1 set of horizontal cable tie device (11 inches)
7) Thread pressing knife device, longitudinal folding knife device (4 point lines, 1 slitting)
8) 1 set of claw nails and fine adjustment device
9) 1 set of marking device
10) 1 set of fast paper output adjustment device
11) Paper Scrap Function Brush to Remove Paper Scrap
12) High precision grinding gear and Timing belt wheel of main transmission part
13) 1 set of paper conveyor belt
14)The accessories box contains: 100 punch mould, 300 punch needle, 10 horizontal line knives and other standard tools.
