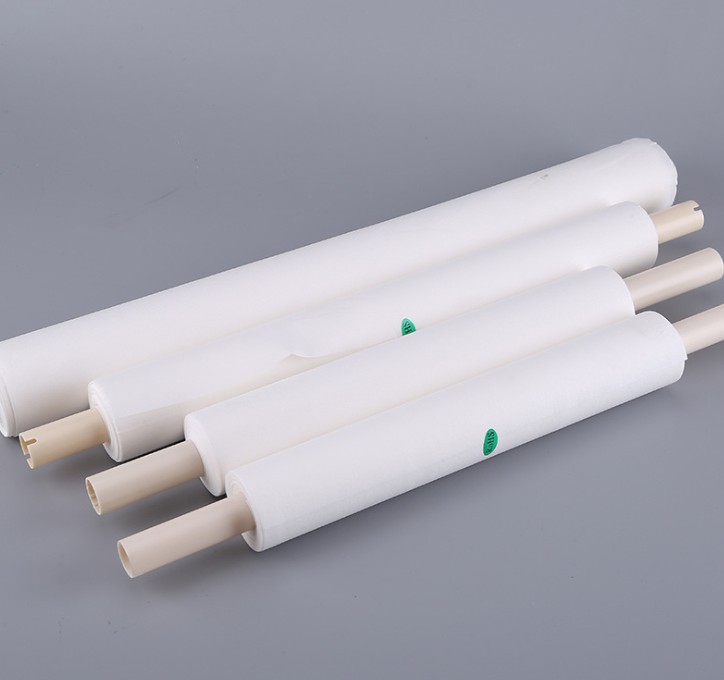

The automatic SMT roll wiper paper rewinder is widely used in non-woven fabrics, stencil wiping paper, industrial cleaning wiping paper, dust-free paper and so on.
The machine uses automatic control of unwinding tension, automatic winding, automatic tube release, automatic glue spraying, automatic cutting, automatic rewinding, automatic labeling, automatic unloading and automatic rolling out, and the degree of automation is high.

Features:
1. The frequency converter is used for speed regulation, and the production speed is adjustable.
2. The unwinding shaft uses a tension inflatable shaft; the unwinding tension uses an electromagnetic powder brake, which can easily adjust the tension according to the inner diameter of the winding.
3. The special rewinding mechanism with ultra-small core size, the core size can be adjusted arbitrarily, and the loading and unloading operation is simple.

Main Data：

Name: Automatic SMT Roll Wiper Paper Rewinder

Model:PPD-ASMT600

Unwinding inner diameter: 76mm

Unwinding width: 600mm

Unwinding outer diameter: max800mm

Rewinding width: max600mm

Rewinding inner diameter: 20/25 mm or customized

Rewinding diameter: max120mm

Speed: max100m/min

Voltage: 220/380/415V optional
