Automatic Slitter Rewinder For Thermal Paper Cash Register Paper
PPD-ATPS900

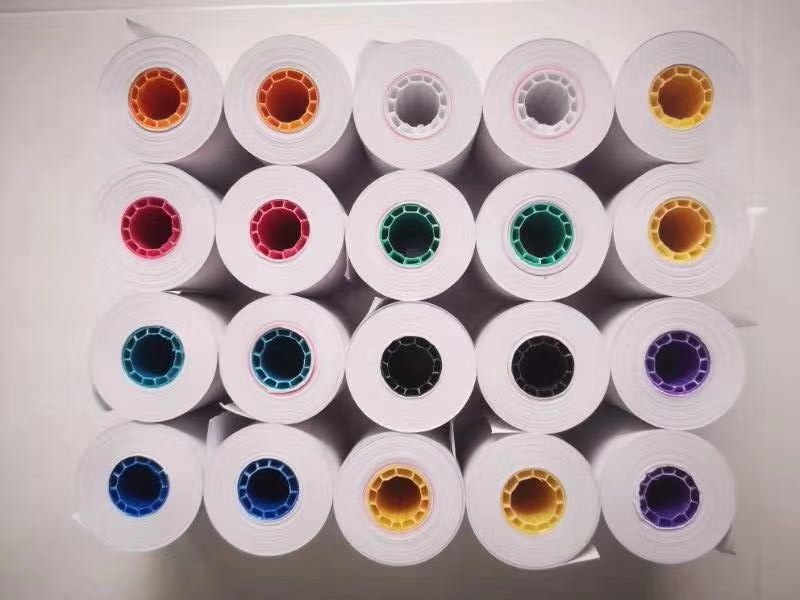

The automatic slitter rewinder for thermal paper cash register paper is mainly suitable for slit rewinding thermal paper, cash register, fax paper, computer bill, bank receipt, ATM paper, medical record paper, pos paper, lottery paper etc. It uses surface
rewinding method, automatic finish insert paper, rewinding paper, core feeding, rewinding roll exchange, paper cutting and paper gluing.
Features:
1. It uses synchronic belt to avoid over lap problem.
2. It uses frequency inverter for the main inverter motor driving, the speed can be displayed on the operation panel.
3. The machine uses a red line marking system, printing a red line at the end of the paper rolls.
4. The machine uses round blades to cut, it is equipped with an automatic material waste side trimming system.
Technical Parameters :
Name:Automatic Slitter Rewinder For Thermal Paper Cash Register Paper
Model:PPD-ATPS900
Jumbo roll width:max 900mm
Jumbo roll OD:max800mm
Jumbo roll ID:3inch
Product roll width: 30-900mm
Product roll OD:max160
Speed: max168m/min
Voltage:380V, 50-60 Hz
Power: 4.5 kw
Weight: 3500 kgs
Machine dimension:2810mm×1010mm×1700mm
