Automatic pvc cling film perforation rewinder with static eliminator is

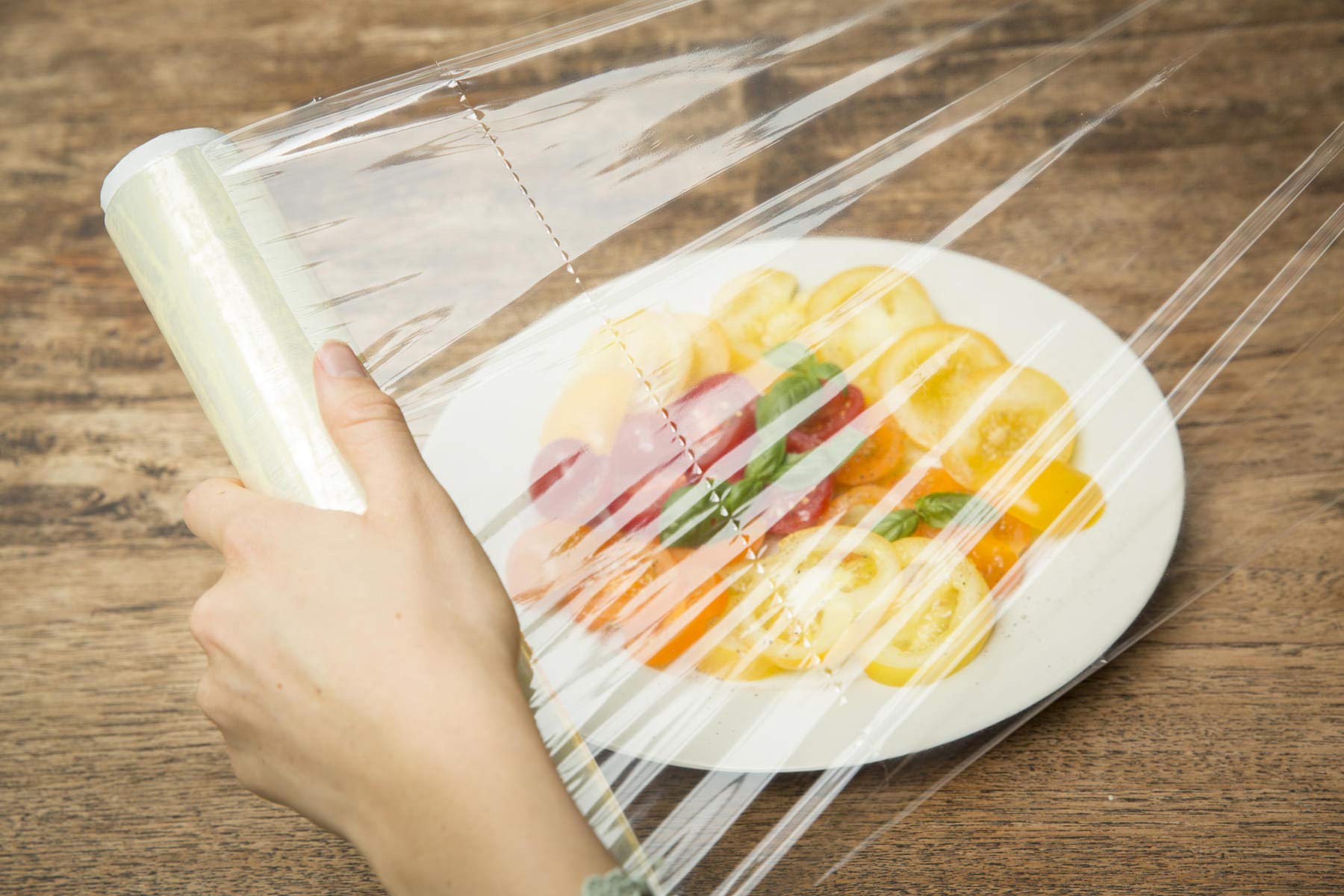

ideal working with different food wrap film,include PE cling film,PVC cling film, food PE stretch film with dot line. This model makes the dot line for easy tear off the food wrap film instead of the cutting blade on the box. Machine is very simple to operate and user friendly.

Features:
1.Machine works with 2 kinds electrostatic adsorption to meet rewinding of different widths.
2.Length counting in meter and feet,all the data can be saw in touch screen.
3.When film break,the machine stop;Mother roll lack of material,machine will alarm.

Main Data:

Name:Automatic PVC Cling Film Perforation Rewinder With Static Eliminator

Model:PPD-ACW500SE

Mother roll width:150-500mm

Thickness: 7micron to 15micron

Mother roll ID:3inch,6inch

Mother roll OD:Max 500mm

Rewind roll width:Same as mother roll

Rewind roll ID:1.5/ 2/ 3inch

Rewind roll OD:max220mm

Perforation length:100-500mm option

Shrinkage Factor:total 2mm(Both side 1mm）

Normal rewinding speed:max600m/min

Perforation speed:max200m/min

Voltage:220/380/415V,50Hz
