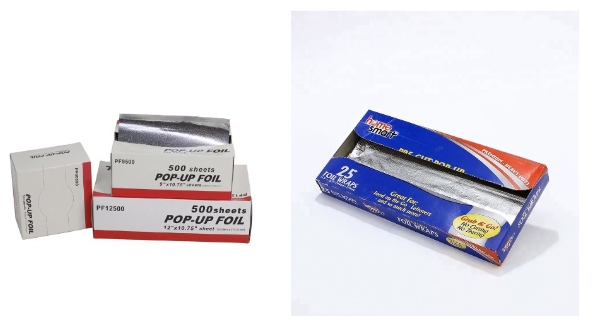

The automatic pop up foil sheet cartoning machine is ideal for cartoning pop up foil sheet for household, kitchen, BBQ, cookware etc.
It can pack the pop up foil sheet into the box and close it continuously and automatically.
The machine is equipped with a series of sensors and automatic protective devices to ensure that the machine runs safely and effectively.

Features:
1. Servo stepping motor, touch screen and PLC programmable control system are adopted, with a high degree of automation.
2. Automatic feeding, box opening, box entry, batch number printing, glue spraying, box sealing, waste removal and other packaging forms.
3. Photoeye automatic detection and tracking system saves packaging materials.
4. The machine has a compact structure, reasonable design and convenient operation.

Technical Data:

Name:Automatic Pop Up Foil Sheet Cartoning Machine

Model:PPD-PUPC60

Packing box size:L:100-320*W:100-190*H:30-100mm

Speed:10-60pc/min

Paper feeding:Conveyor belt

Main power:1.5kw

Feeding power:0.25kw

Gluing power:3.5kw

Air supply:0.5-0.8Mpa

Voltage:380V,3ph,50hz

Machine dimension:4000*1600*1800mm(LxWxH)

Weight:1500kgs
