Automatic Machine For Winding Aluminum Foil

PPD-CG450
Automatic Machine For Winding Aluminum Foil
Get Quote

Automatic machine for winding aluminum foil is welcomed in Europe, it is high speed design with fully automatic operation.
This machine can save labor cost to make the product cost less than others.

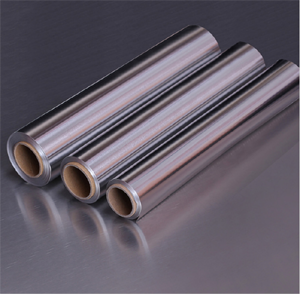

It is widely used for winding aluminum foil for kitchen foil, hosue foil etc.
Machine uses the centering rewinding method, the production speed at 250meters per minute.
The contorl unit is PLC HMI hub chip to display on touch screen for simple operation.
Different foil widths are acceptable for 295mm,300mm,450mm etc.

Main Data:

Name:Automatic Machine For Winding Aluminum Foil

Model:PPD-CG450

Raw material:Aluminum foil

Master roll web width:maximum 450mm

Master roll core inner diameter:3/6inch

Master roll outer diameter:600mm

Rewinding roll width:maximum 450mm

Rewinding roll core inner diameter:25/35/38/40mm

Rewinding roll length:2/3/5/7/10/30/50m etc

Design speed:Maximum 250m/min

Power:2.5kw

Voltage:220/380/415 /450v

Pneumatic requirement:0.2Mpa
