Products

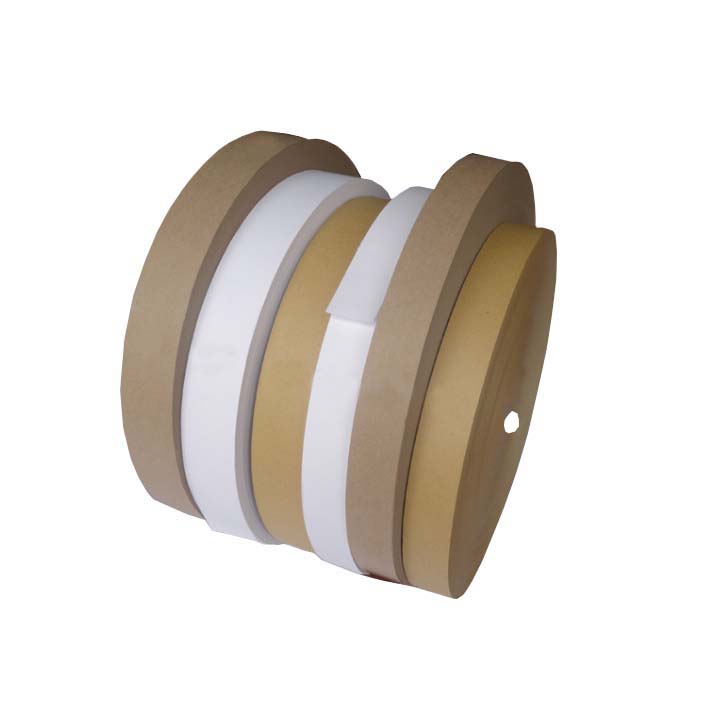

Automatic coreless kraft paper slitter rewinder is our latest model,it is suitable for slitting various super-large rolls, such as kraft paper, white cardboard, coated paper, thermal paper,ATM paper,POS paper,fax paper and other rolls.

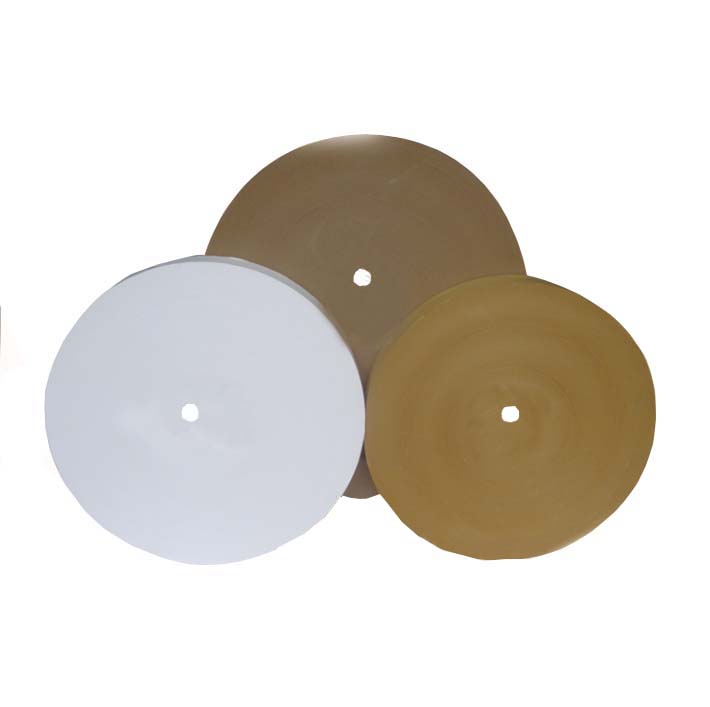

This model can do big diameter coreless product roll,max outer diamter can reach 250mm.
The electrical control system adopts PLC control, and the operation interface adopts a touch screen. The working parameters and operating conditions can be set on the screen.

Features:
1.Machine adopts circular knife slitting, the slitting disc surface is neat, and there is a waste edge blowing device.
4. Automatically counts meters and automatically stops when the setting meters is reached.
5. Automatic pneumatic knife cut off the product roll,coreless rewinding, automatic shaft extraction device.

Main Data:

Name:Automatic Coreless Kraft Paper Slitter Rewinder

Model:PPD-CKPS900

Jumbo roll width:max900mm

Jumbo roll OD:max1000mm

Jumbo roll ID:76mm

Rewind roll width:max900mm

Rewind roll ID:25mm coreless

Rewind roll OD:max250mm

Speed:max168m/min

Voltage:220/380/415V,50Hz
