Automatic 5 Shaft PVC Cling Film Rewinder
PPD-5SH450

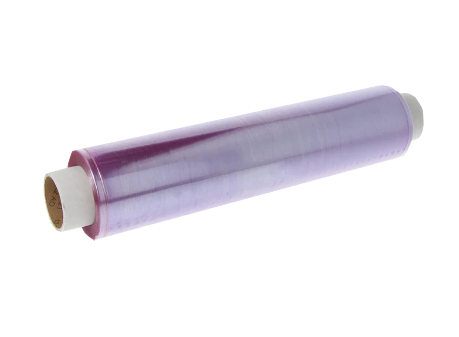

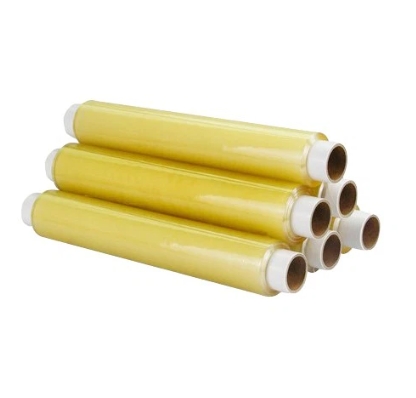

Automatic 5 shaft PVC cling film rewinder is designed for converting of PVC cling, PVC stretch, PE stretch and PE cling roll.
Its control system is consit of touch screen ,PLC ,inverter,for simple operation.
Features:
1.Machine works with 5 station full automatic rewinding,automatically load the paper tube and automatically change the roll.
2.Machine with high capacity, small roll full automatic food cling film machine easy to operated by worker.
3.Machine adopts automatic blade cut off the finsihed PVC cling film roll instead of heating wire cutting.
Main Data:
Name:Automatic 5 Shaft PVC Cling Film Rewinder
Model:PPD-5SH450
Mother roll width:450mm
Mother roll inner core:3inch(76mm)
Mother roll outer diameter:Max 475mm
Rewind roll core:35/38/40mm option
Rewind roll length:5-150m
Rewind roll width:max450mm
Speed:Max650m/min
Voltage:220/380415/450v,3 ph
Power:4.37kw
