Aluminum Foil Sheeting Machine
PPD-AFS600

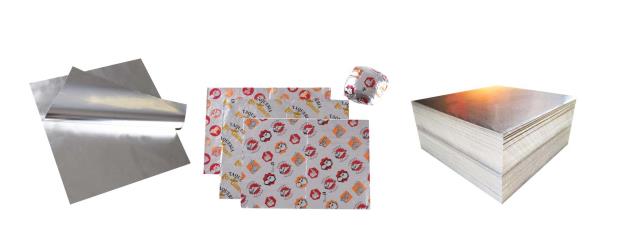

The aluminum foil sheeting machine is mainly suitable for cutting food sheet aluminum foil roll, printed foil roll, baking paper, silicon paper, wax paper, kraft paper, glassine paper, candy paper, gift paper etc. Features: 1. The machine uses
stepper
motor control of fixed length cutting.With electric optical tracking system.
2. The machine light, electricity and an easy, cut-cut, high precision, mechanical stability, low noise.
3. Motor frequency control, automatic counting etc.
4. Strong cutting tool quality, the product is fine.
Technical Parameters:
Name:Aluminium Foil Sheeting Machine
Model:PPD-AFS600
Effective cutting width: 100-550mm
Effective cutting length:30-1200mm
Effective cutting thickness of aluminium foil: 8-40micron
Speed: 10-50m/min
Cutting accuracy:±0.2~0.5mm
Power:3kw
Voltage:380V,50hz
NOTE:Different size can be customized.
