3 Side Seal Aluminum Foil Roll Packaging Machine
PPD-AFPM250

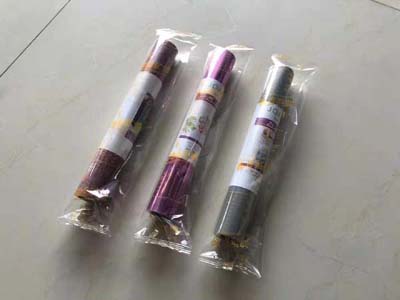

3 side seal aluminum foil roll packaging machine is a multifunctional model to pack aluminum foil roll, cling film roll, baking paper roll, and also any other daily commidity products.
Features:
1. Touch screen operation, intelligent system to control the parameters of the whole machine.
2. The feeding and paper feeding structure is controlled by servo to realize the function of stepless speed change, and the operation is simple.
3. The temperature of horizontal and vertical sealing is controlled independently, which is suitable for the packaging of different materials.
4. Linked film reeling shaft, uses multi-linked film reeling shaft to coordinate film pulling to suit more film materials.
5. Hot-press the central sealing area, heat the double-sided turntable to seal, and seal the back of the packaged product.
6. The end seal is cut, and the cutting knife is heat-sealed at a constant temperature to seal the front and back ends of the packaged product to prevent curling or air leakage
Main Data:
Name:3 Side Seal Aluminium Foil Roll Packaging Machine
Model: PPD-AFPM250
Film width: 240mm
Bag length: 300-450mm or as customized size
Bag making width: 30-110mm
Product height: 45mm
Roll film diameter: 320mm
Speed: 1-80 packs/min
Voltage: 220V, 50/60Hz
Power: 2.4kw
Machine size: 3685*665*1375mm(L*W*H)
Weight: 500kg
NOTE: Different sizes can be customized.
