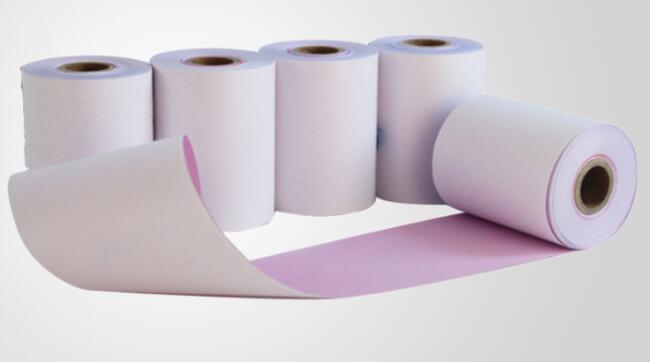

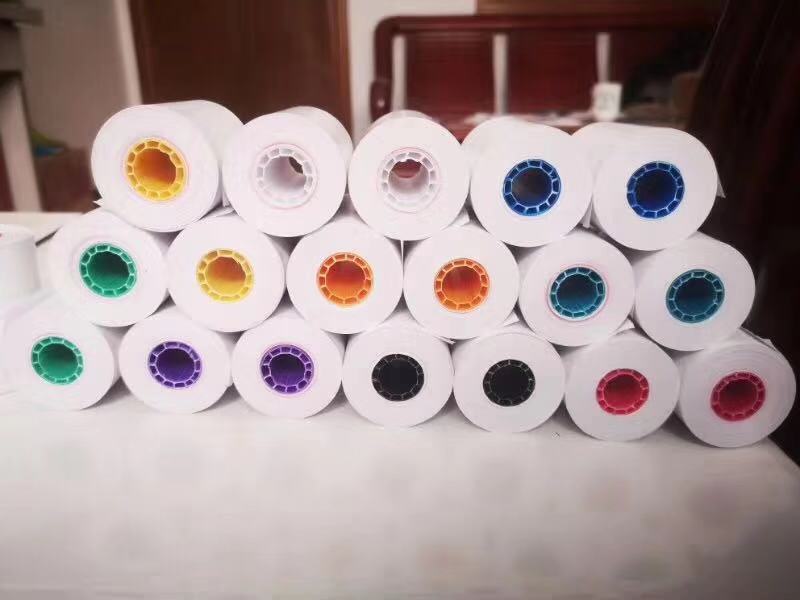

3 ply NCR paper roll slitter rewinder is a pneumatic type paper roll slitter rewinder. The machine is mainly suitable for cutting all kinds of NCR paper, fax paper, cash register paper, computer bill, medical record paper, pos printing paper, ATM reel paper and self adhesive paper etc.


Features:
1.Machine equipped with auto tension control system for unwinding tension.
2.Machine uses Synchronic Belt to avoid over lap problem.
3. Frequency converter frequency control, Siemens PLC, touch screen and Siemens electrical control system.
4.Automatic marking device, automatic measurement.
5. Automatic air delivery and discharge device.
6. Single layer, double layer, three layer type paper roll can be selected due to the individual needs of customers.

Main Data:

Model:PPD-3PLY900

Max. parent roll width:900mm

Max. parent roll diameter:1200mm

Max. rewinding diameter:160mm

Min. slit width:25mm

Max. machine production speed:150m/min

Unwinding shaft:3inch air shaft

Rewinding shaft:12.7/15/18mm etc(or as request)

Voltage:380V,50hz,3ph

Power:4kw
