The 2 shaft PET film rewinder is our latest design for rewinding PET film rolls.
The machine works with a variable frequency drive, and an LCD monitor that shows how far the operation has progressed through the rewinding task.

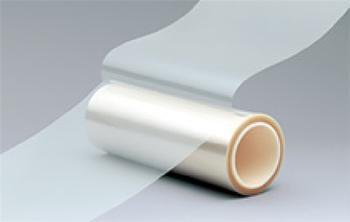

PET film is commonly used for packaging materials and a wide variety of other applications. Our PET film rewinder machine is used for rewinding all kinds of material thickness from 40gsm to 500gsm.

Features:
1. Automatic tension control allows the finished PET film to have a smooth and flat surface.
2. It is designed with a very compact yet sturdy construction. With working speed up to max150m/min
3.2 shaft rewinding, automatically replace the shaft, more effcicent.

Main Data:

Name:2 Shaft PET Film Rewinder

Model:PPD-2SPET600

Jumbo roll width:max600mm

Jumbo roll ID:76mm

Jumbo roll OD:max600mm

Rewind roll width:max600mm

Rewind roll ID:38/50/76mm option

Rewind roll length:max300meter

Speed:max150m/min

Voltage:220/380/415V option
